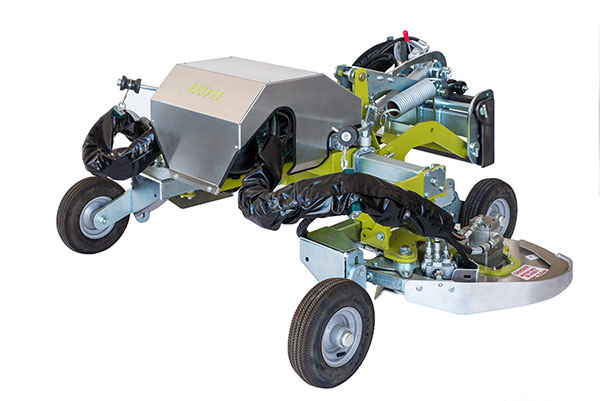

HIGH SPEED SENSOR MOWER

Patented technology, World Leading design
8km/h Mowing Speed.
Compact and Lightweight
REDUCED operational COSTS
PROVEN performance
Accurate and Precise SENSING
1.6m to 3.0m row widths

REQUEST MORE INFO

Features

All Hydraulic Design – Simple Plug and Mow Design

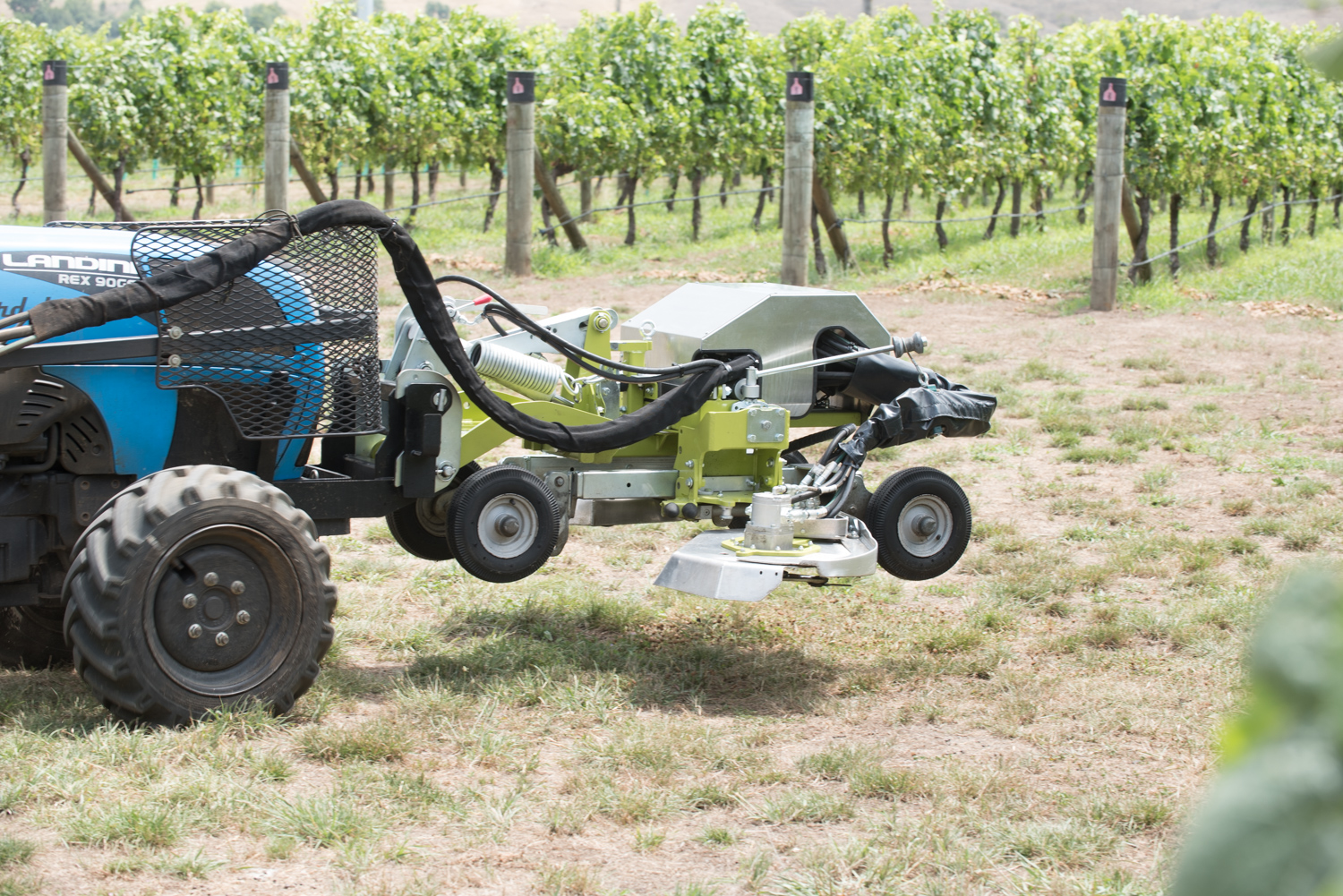

Front Mounted Mowing System
Superior out-front visibility of mowing operation
No PTO requirement
Works with any rear mower width and all row widths

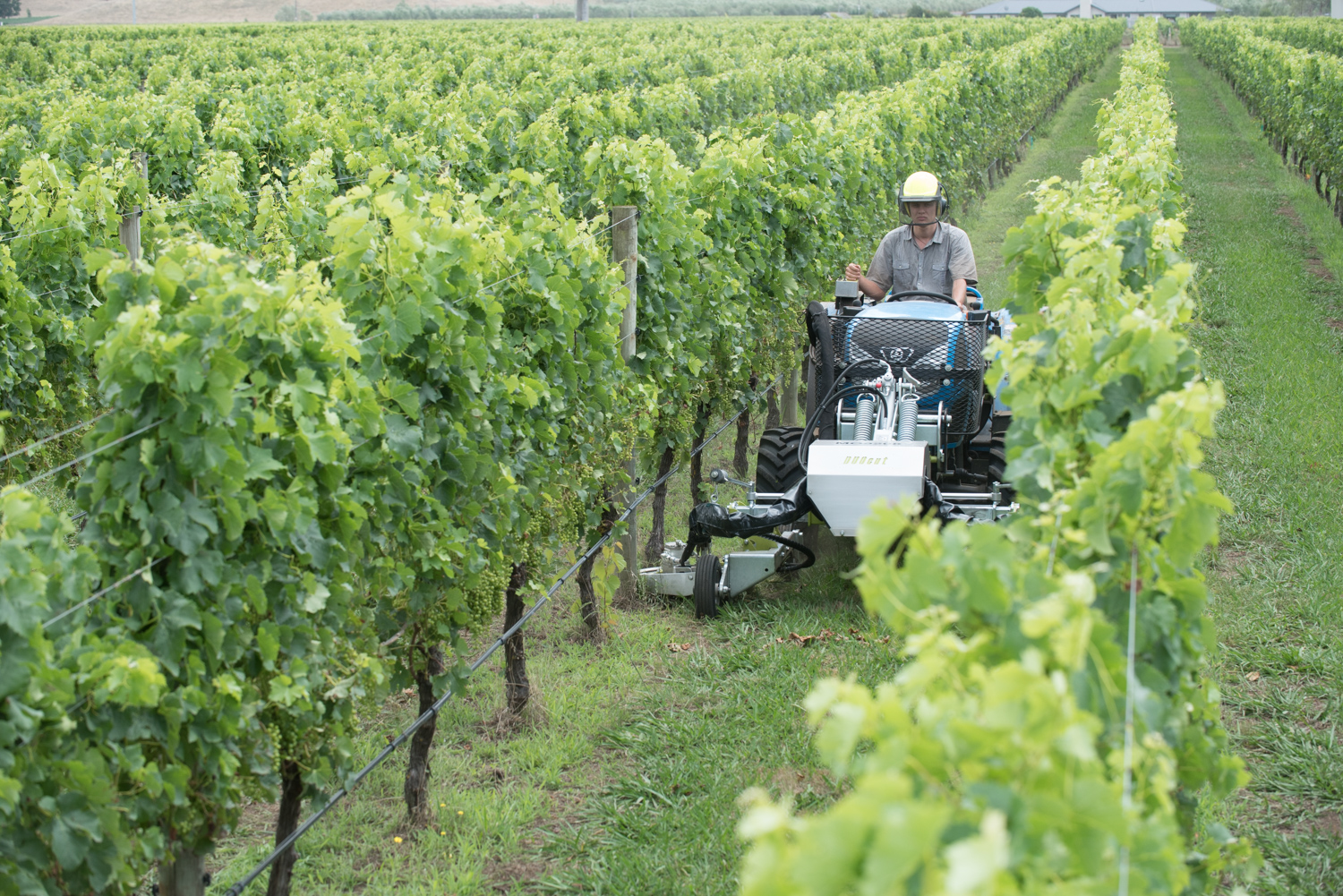

Mow the inter-row and under-vines in a single pass (multi-tasking operation) Hydraulic Actuation In Both Directions
Very fast and accurate
No spring bounce or fatigue
Patented hydraulic circuit design providing extremely fast sensing action Hydraulic Requirements
45 Litre/min flow rate
Optimised for typical PTO economy RPM
1 x pressure and 2 x return remotes

High Speed and Accurate Sensing – Industry Leading Design

Mow up to 8km/h Forward Speed

Comparable to inter-row mowing speed
Designed for accurate mowing at highspeed

Accurate Senor Wand Design

Accurately follows the cutting radius of the blades
Sensor wand is only 30mm away from the cutting blade height
Eliminates plant damage and provides very close cutting radius
Adjustable sensor weight – light adjustment for young plants and heavy adjustment for heavy grass conditions

Light Weight & High Strength Design

Very light weight mower-head design
Minimises total movement inertia
High speed head direction change
Low mass high-tensile materials used
Heavy duty sub frame to absorb all shock loading

Minimal Moving Parts

Direct actuation of mower head from the sensor wand
No complex linkage or electrical contacts in the sensing circuit
Designed for a very high duty cycle and low maintenance environment

Large Row Width Variation – All Row Widths Covered

Vineyards Row Widths:

1.6m to 3.0m

Kiwifruit, Citrus & Pipfruit Row Widths: 3.0m to 5.5m

Hydraulic side-shift combined with mechanical telescoping width adjustment
Joystick adjustment of mowing width

500mm Cutting Diameter Per Side

Override Side-shift Retraction

Side-shift safety override system automatically retracts the mower width if set out too wide

Parallel Lift and Contouring Linkage – Eliminates Scalping

Simple Tractor Fitting

Quick-attach mounting bracket attached to front of tractor
Can be mounted onto existing weight block or front linkage
Rapid fitting using hydraulic lift ram to attach and remove from the tractor
Eliminates operator lifting during mounting

Contouring Linkage On All Axis

Parallel-lift linkage
Contours over undulating ground fully independent of tractor movement
Spring mounted to minimise rolling weight & compaction
Accurate tracking to vine row ground contours to minimise scalping

Low Operational Cost and Rapid Blade Replacement

Low Cost Blade Replacement

Blade cost is approx $3 per blade
Total of 4 blades only to replace
Blades are double sided for double life

Rapid Blade Replacement

Requires only a socket through the top cover to remove the blade retainer nut
The retainer bolt is keyed into the blade carrier eliminating the requirement for a second spanner

No Greasing Required

Minimal operator maintenance required
Self lubricating bushes or sealed bearings used on all mowing parts
Eliminates premature wear due to dusty working environment & incorrect greasing technique

Simple Mowing Height Adjustment

Mowing Height Range of 50mm to 200mm

Mowing height is simply adjusted by the sliding wheel brackets

Mowing Heads Can be Angled Up to Mow Over Mounded Rows

Hydraulic Tilt Option Up To 45o Tilt Angle for Benched Rows

Jockey Wheel Option Provides a Contouring Head Solution

Compact Design – Operate in Narrow Rows and Tight Headlands

Weight: < 350 kg Total Mounted Weight

Length: 1400mm (Max) From Front Of Tractor

Good Headland Manoeuvrability

Rapid side-shift and lift functions during headland manoeuvring

Joy Stick Controller – Full Control At Your Finger Tips

Complete Mower Control From the Joystick Controller

Finger tip control of all mower functions
Adjustable controller mount system to provide optimum operator comfort and flexibility
Waterproof design for ROPS tractors
Controller can be unplugged from the main wiring loom for quick de-mounting from the tractor

Blades can be turned on/off from Controller
